Frequency range
45Hz-40kHz in room response

Power handling
20 – 120 Watts RMS recommended amplifier power

Sensitivity
88dB for 2.83 volts at 1 metre

Impedance
Nominally 6 Ohms (minimum 3.6 Ohms)

Configuration
2-way

Enclosure type
Bass reflex, front vented with rear terminal plate

Low frequency drivers
Cast aluminium basket with a nominal 130mm (5″) doped curvilinear paper cone. 30mm (1.2″) vented magnet voice coil wound on high temperature kapton former, with copper shorting ring

High frequency driver
26mm (1″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Non-reflective dual chambered magnet structure with copper shorting ring to lower distortion

Input terminals
Gold plated binding posts

Mounting
Key-hole style bracket, located on the rear of the cabinet

Dimensions
355mm high x 245mm wide x 200mm deep at the top (110mm deep at the bottom)

Weight
6kg each

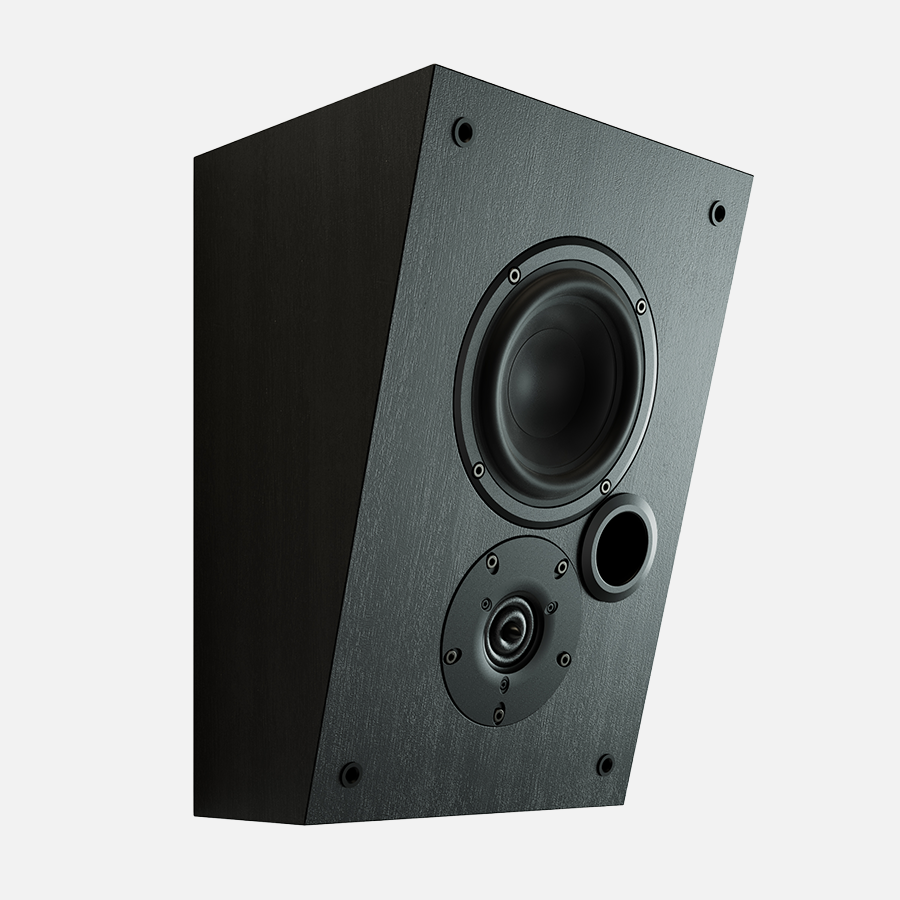

Hear the crackle of leaves underfoot and the sharpness of the violin as the thriller hits its peak. Be immersed in cinema quality sound at home with the wedge-shaped design of the Dynamix Mk4, with the same 15-degree angled baffle used in Krix’s commercial cinema surround speakers, providing the ultimate sound experience.

The bass and mid-range are delivered through a high grade 130mm driver with a doped curvilinear paper cone, over-sized voice coil and powerful magnet, while the tweeter is a 26mm ring radiator with extended frequency response. The bass reflex design delivers efficient yet balanced bass uncharacteristic of its size, while the front port eliminates any “boomy” bass, often cause by wall mounting a rear-ported design.

Ideal for rear or side surround speakers in your home cinema, the Dynamix Mk4 can be mounted higher up in the room and on the wall, achieving excellent pattern control and audio coverage while also looking great.

For the ultimate sound experience at home, play it through Krix.
